	A. - 2.	peeling PLANTS
		From raw material input up to packing

18.	Onion peeling machine R-OW-150-A1. - Capacity approx. 3-3,5 t/h. Part of an onion processing line, peeling rollers 4000 mm long, diameter of the screw conveyor 1500 mm. With 2 integrated conveyor screws, each individually adjustable. Working without water.
	1	2

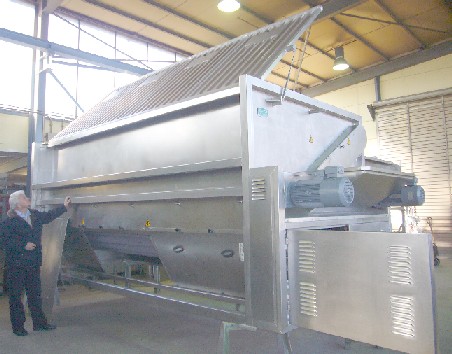

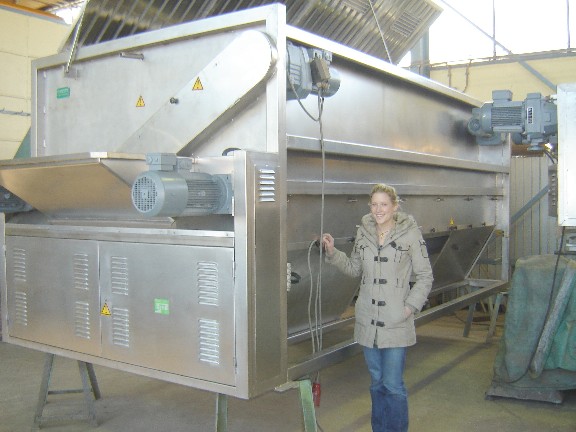

	Onion peeling machine, working without water.	The machine is nearly hermetically seals so that hardly any onion fumes can escape. - Machine in the photo without base frame. Normal discharge height of the machine approx. 2000 mm.
	3	4

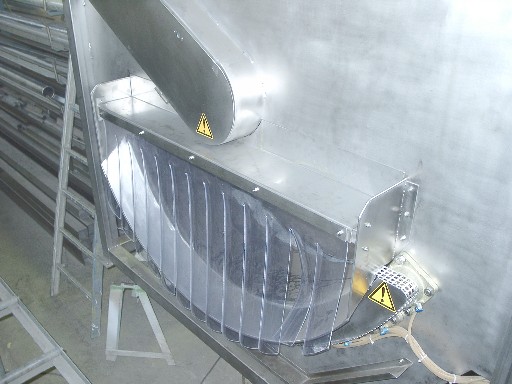

	Screw conveyor diameter 1500 mm. Two inbuilt, adjustable screw drives. Screws in total about 4000 mm long.	Even at the discharge of these onion-peeling machines, only a few vapours can escape. - A central suction system ensures that any such nuisances for the personnel are nearly completely eliminated.

Please also see Subsection 1 - "Peeling machines" !
