A.   -   2.   peeling PLANTS
    From raw material input up to packing



7.  Complete peeling plant with sterilisation (heat treatment) of the peeled products in 5 kg plastic bags:
  Tipping device for boxes, stone remover, roller peeling machine R-OW-90-A, storage bin, inspection with refeeding of potatoes, which have to be peeled once more, with sorting device for the peeled potatoes, with cutting station, with preserving and sack-filling devices, with autoclaves to preserve the peeled potatoes and other tubers and root vegetables, packed into 5 kg plastic bags, by heat treatment (sterilisation).

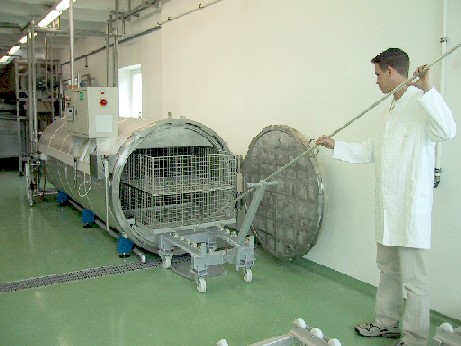

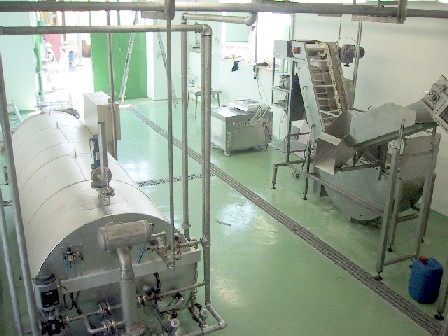

  At the right-hand side: Preserving and sack-filling device, vacuum packaging device. At the left-hand side: autoclave. Capacity: approx. 800 kg potato products in 5 kg plastic bags.   Autoclave during installation.

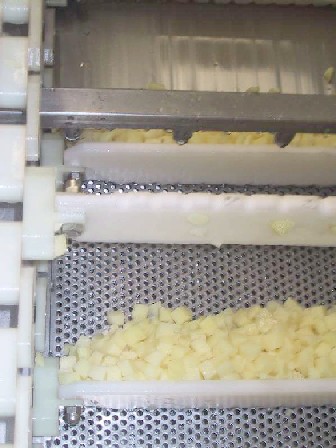

  Roller inspection table: during installation the first potatoes are running over the table.   Potato cubes in the dripping zone of a filling device.



  First tests with the vacuum packaging device during installation.   Potatoes in a plastic bag, vacuumed.


Please also see Subsection 1 - "Peeling machines" !


Further reading:

Q05

 		A few thoughts on the construction of a modern and efficient peeling system for potatoes and other tubers and root vegetables in a commercial potato peeling plant - Located in Western Europe -
Q15 An Invitation to View Various Peeling Systems
Q130 Planning Package for Peeling Systems for Tubers and Root Vegetables - Ask us for a consultation -
Q133
 		A Simple Processing System for Peeled Potatoes, etc, from Small to Medium Peeling Capacities: simple and inexpensive lines for washing, inspection, preservation, weighing and packaging of peeled potatoes etc.
Q140


 		The new DORNOW Large-scale Peeling System in L. for peeling, cutting and packaging potatoes, carrots and other tubers and root vegetables for supermarkets, canteen kitchens and catering businesses. Capacity up to 2,5t/h of finished product, area required for set-up: approx. 25 x 15 m
Q172

Steam Peelers, Combinations of Mechanical and Steam Peelers
Two Possibilities for Economic Optimisation of Steam Peeling Lines for Peeling Root Vegetables and Tubers.


Please also see "Further reading" in Subsection 1 - "Peeling machines"

The sections mentioned there provide information about those machines which are suitable for use in peeling systems.
